Certs Service

The certs service is a certificate authority used to issue certs related to CVMs service for mutual and mutual attested TLS purposes. The certs service provides the ability to issue, renew, revoke and download certificates.

Issue a Certificate​

This is the creation of a certificate associated with a specific backend.

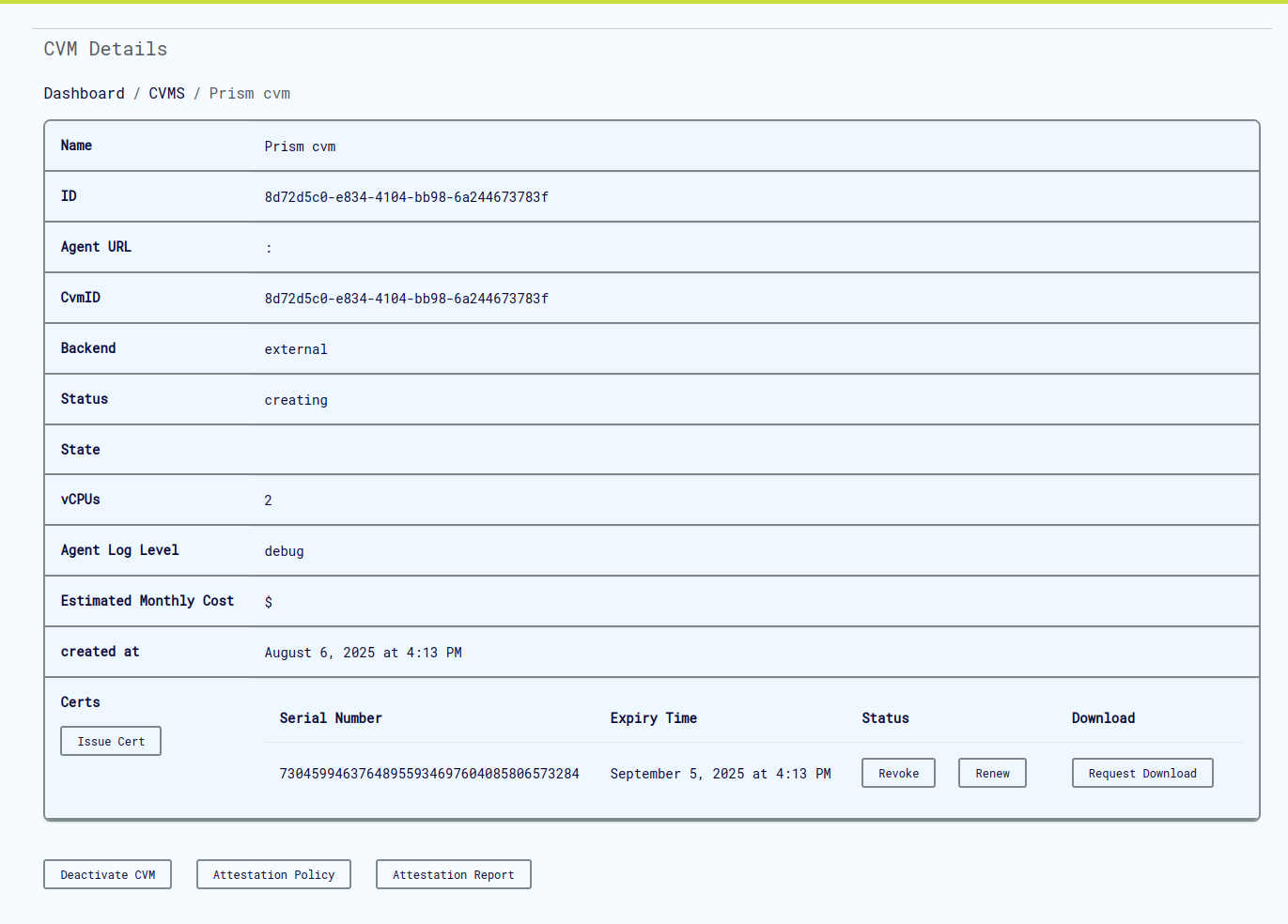

This can be done on the UI on the specific backend page, by clicking on issue cert button. Issue Certificate

This can be done on curl using:

curl -sSiX POST https://prism.ultraviolet.rs/certs/issue/backend/<backend_id> -H "Content-Type: application/json" -H "Authorization: Bearer <user_token>" -d @- << EOF
{
  "ip_addresses": []
}
EOF

example:

curl -sSiX POST https://prism.ultraviolet.rs/certs/issue/backend/fde3263e-70b8-4ce9-9f3c-4a203a0dcdf5 -H "Content-Type: application/json" -H "Authorization: Bearer <user_token>" -d @- << EOF
{
  "ip_addresses": ["192.168.100.4"]
}
EOF

response:

HTTP/1.1 201 Created
Content-Type: application/json
Date: Thu, 02 May 2024 11:35:37 GMT
Content-Length: 59

{"serial_number":"75709155906162784911683514578929321876"}

Download a Certificate​

This is a two step process. First we'll obtain a short lived token. Then using this token we'll be able to download the zip file containing the associated cert.

First we'll request a download token:

curl -sSiX GET https://prism.ultraviolet.rs/certs/<serial_number>/download/token -H "Authorization: Bearer <user_token>"

response:

HTTP/1.1 200 OK
Content-Type: application/json
Date: Thu, 02 May 2024 11:46:11 GMT
Content-Length: 164

{"token":"eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJleHAiOjE3MTQ2NTA2NzEsImlzcyI6IlVsdHJhdmlvbGV0Iiwic3ViIjoiY2VydHMifQ.4njH2KAz-qxzuaFkVx3WLQNuRTUdoKBTvlbG11oM7Yg"}

With the token we can then download the cert. Please note that the token is short lived and must be used before expiry.

curl -L -X GET https://prism.ultraviolet.rs/certs/<serial_number>/download -G -d "token=<download_token>" --output <filename>.zip

example:

curl -L -X GET https://prism.ultraviolet.rs/certs/75709155906162784911683514578929321876/download -G -d "token=eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJleHAiOjE3MTQ2NTIzMTYsImlzcyI6IlVsdHJhdmlvbGV0Iiwic3ViIjoiY2VydHMifQ.lvFgVSKAyn2UNeJg1OA4fGxDDZ6pylZTn9UZhrfWR9I" --output certs.zip

On the UI we'll click on request download button, followed by download certs to obtain the certs.

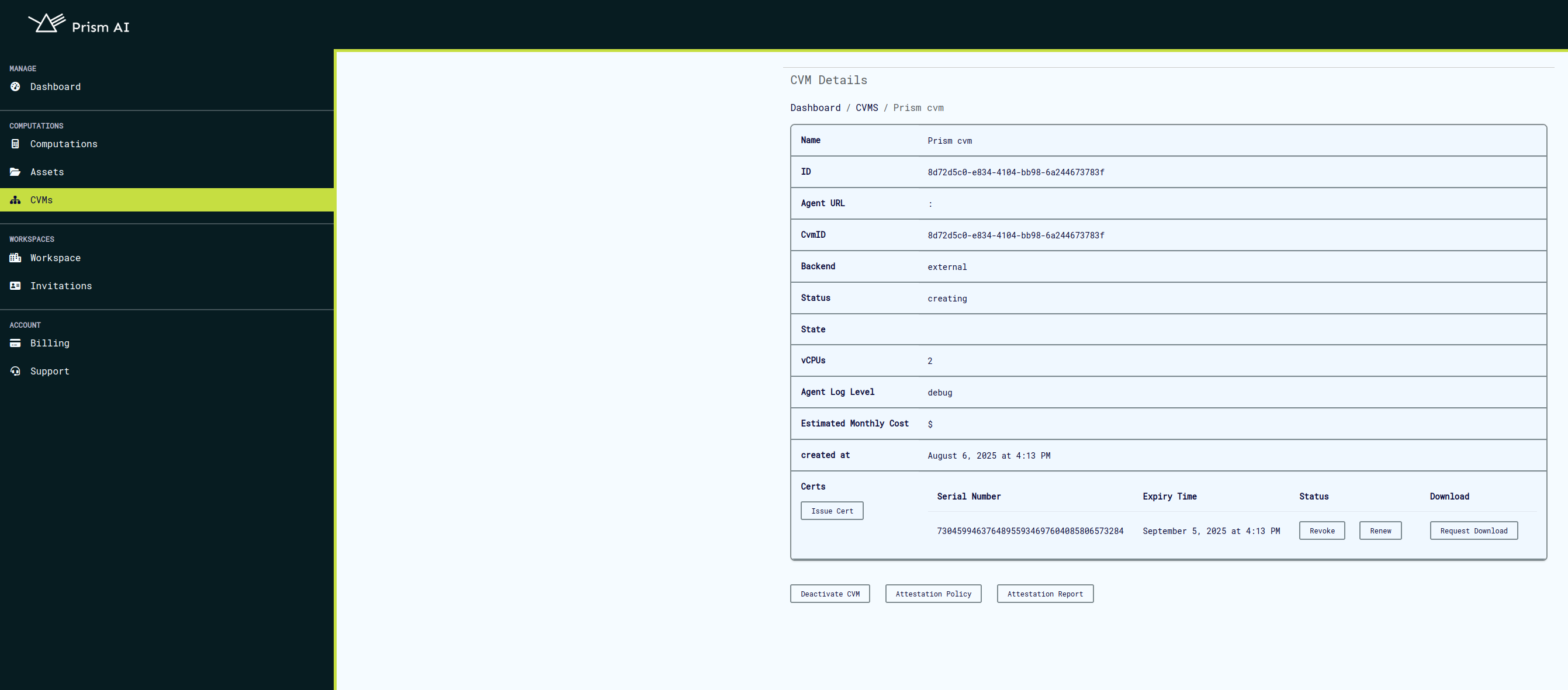

Request Download

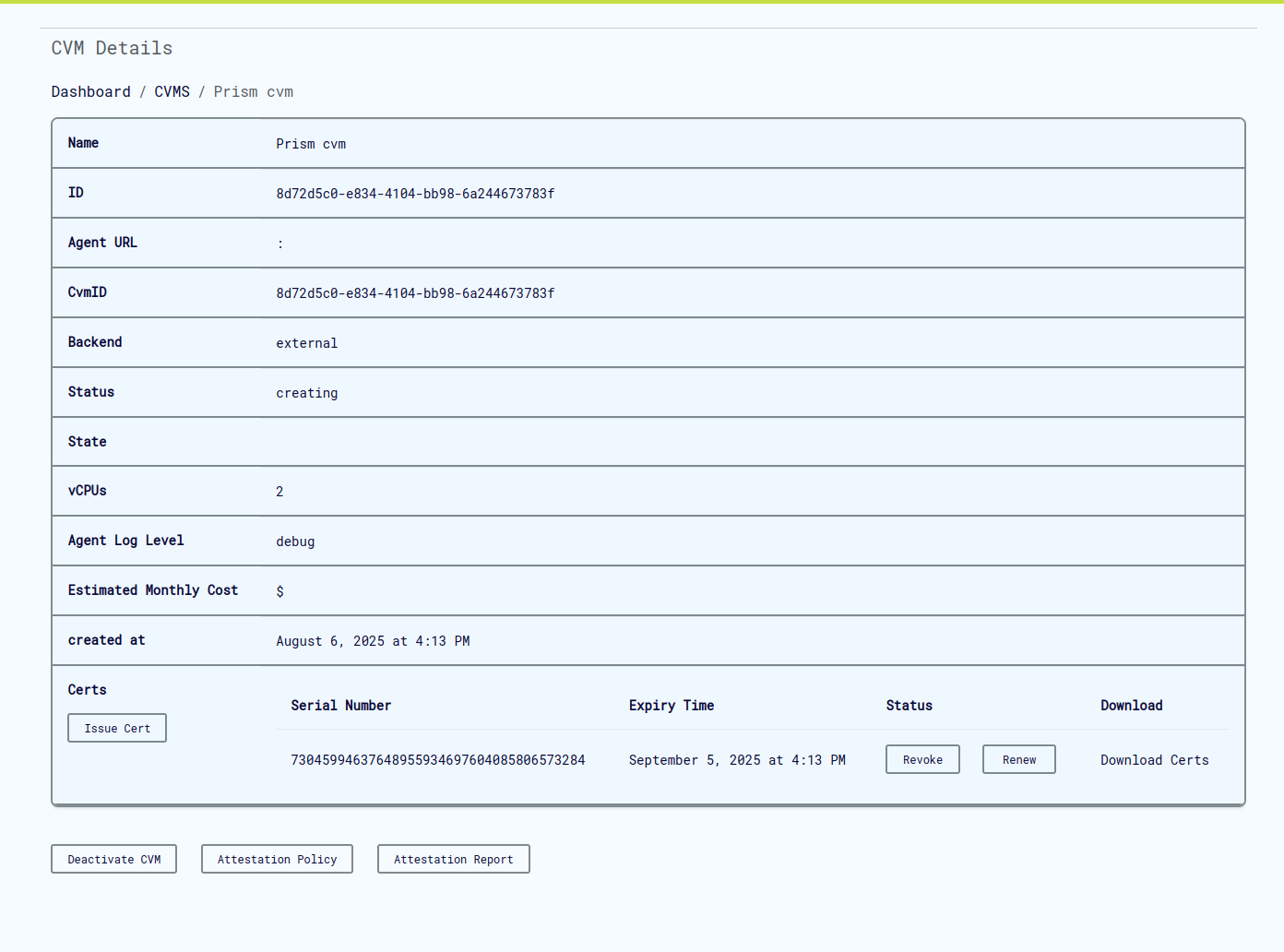

Download Certificate

This results in three files ca.pem, cert.pem and key.pem which we'll use with CoCo's manager to bring the backend online.

Renew Certificate​

Certificates can be renewed before they expire. This will move their expiry date to a future one.

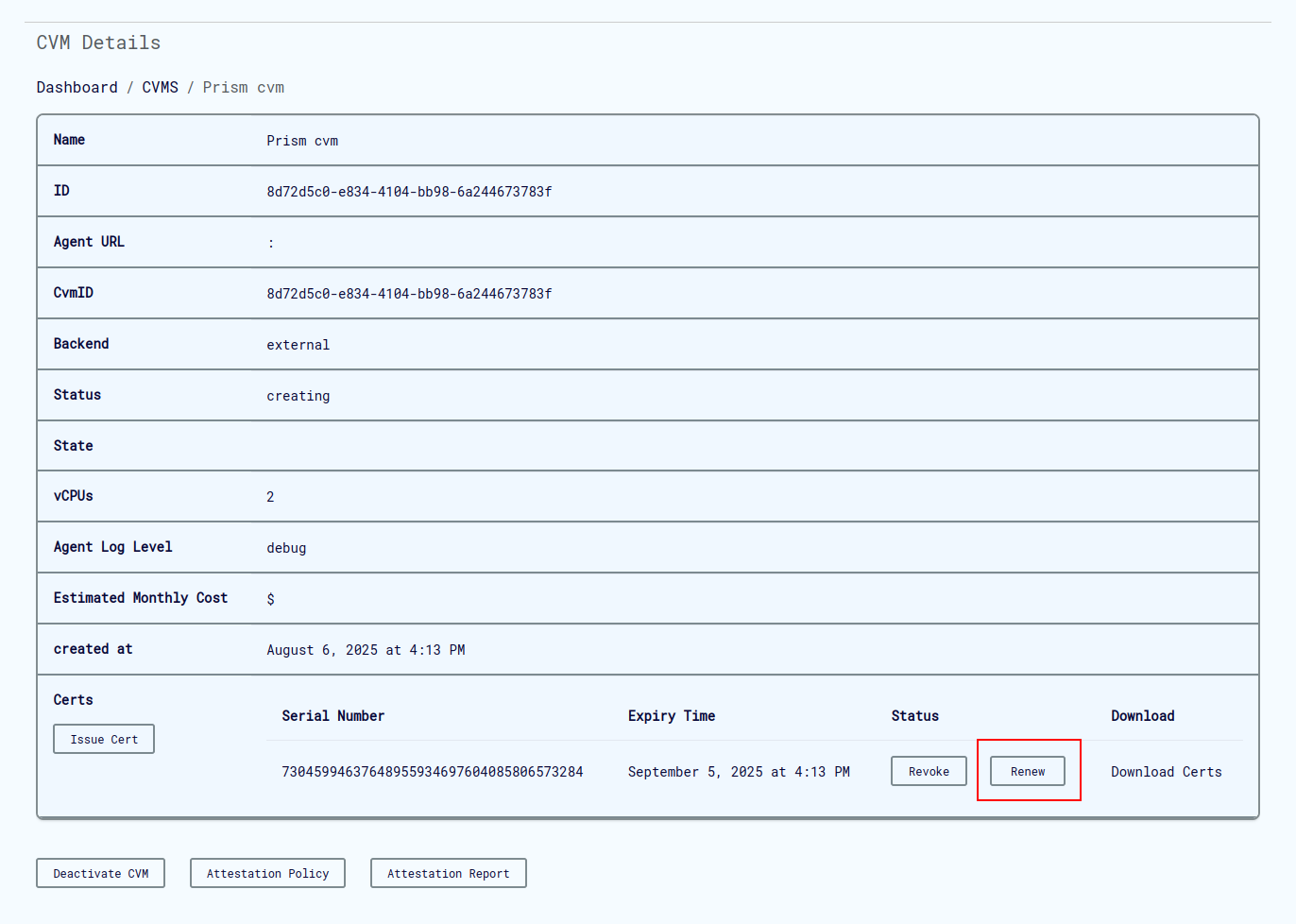

Renew Certificate

curl -sSiX PATCH https://prism.ultraviolet.rs/certs/<serial_number>/renew -H "Authorization: Bearer <user_token>"

response:

HTTP/1.1 200 OK
Content-Type: application/json
Date: Fri, 03 May 2024 13:32:31 GMT
Content-Length: 0

Revoke Certificate​

Certificates can be revoked, which means they can no longer be used for connecting to CVMs service. Revoked certificates cannot be renewed.

Renew Certificate

curl -sSiX PATCH https://prism.ultraviolet.rs/certs/<serial_number>/revoke -H "Authorization: Bearer <user_token>"

response:

HTTP/1.1 200 OK
Content-Type: application/json
Date: Fri, 03 May 2024 13:33:29 GMT
Content-Length: 0

List Certificates​

curl -sSiX GET https://prism.ultraviolet.rs/certs -H "Authorization: Bearer <user_token>"

response:

HTTP/1.1 200 OK
Content-Type: application/json
Date: Fri, 03 May 2024 13:37:04 GMT
Content-Length: 269

{"certificates":[{"SerialNumber":"26722427430573939575087739124584835231","Certificate":null,"Key":null,"Revoked":true,"ExpiryDate":"2024-05-03T13:33:29.405109Z","EntityType":"","EntityID":"ca219243-0dd4-4e6e-94ad-54fbf3dd8b32","DownloadUrl":""}],"total":1,"limit":10}

Online Certificate Status Protocal​

The certs service also provides an endpoint on prism.ultraviolet.rs/certs/ocsp which allows verification of certificates issued by this service.
